突出优势

The unbreakable IBM-compatible, quiet desktop print solution built to excel in the most rigorous office & industrial environments.

  • Heavy-duty with unbreakable metal construction enclosure
  • Lowest noise level in its class: 54 dB (A)
  • Genuine IBM IPDS (optional)
  • Best in class 800M character printhead life
  • Extended ribbon life: 25M Characters
  • Heavy duty 6-pin tractors deliver superior form feed reliability on up to 8-part forms
  • Optional second front feed tractor
  • 18 pin printer: 800 cps @ 10cpi
  • Fully automated and configurable zero-tear form feeding
  • High visibility attention light
  • Support for 18-pin emulations used by legacy IBM & Genicom printers
  • Powerful remote printer management
  • Standard Interfaces: parallel, serial, USB & Ethernet
  • Enclosed pedestal (optional)
  • Unbreakable

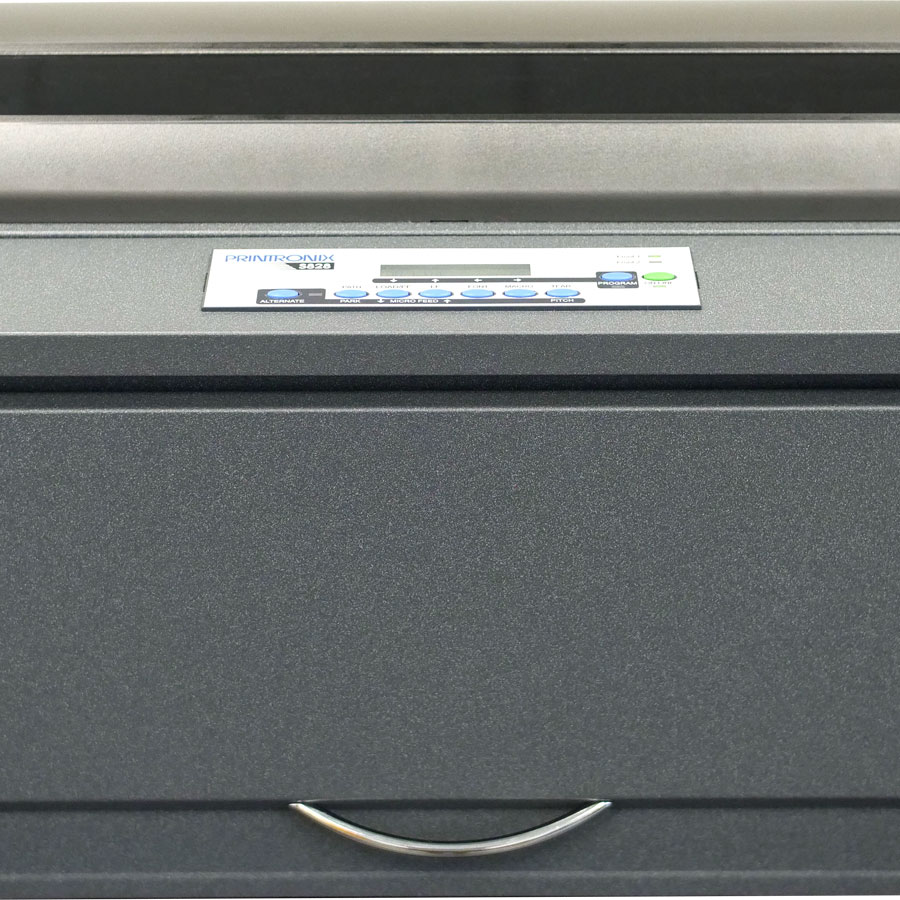

The Printronix S828 sets a new standard for the ultimate in rugged desktop reliability. More than a high performance serial matrix printer, the S828 builds upon the workhorse tradition of Printronix industrial printers delivering maximum uptime, low cost of ownership, and reliable operation across a wide range of environments. In addition to heavy-duty 6-pin tractors for optimal forms feeding reliability, and industry leading printhead life, the most defining feature of the S828 is the highly functional & durable metal construction designed to outlast any other printer in this category.

Quiet

At 54dBa the S828 delivers best in class acoustics. Around 50% quieter than leading competitors, it is unrivaled in noise reduction. The S828 also combines 800 cps print speed performance (@ 10 CPI) with a high function multi-lingual operator interface for efficient and intuitive operation.

Plug & Play Compatibility

Time is money, and the ability to fully automate & customize forms handling will maximize user efficiency through eliminating key presses and expediting forms retrieval. For larger distributed environments, the S828 includes a powerful remote printer management utility to empower IT to view real-time status updates, remotely configure multiple printers, and to access a fully functional virtual operator panel. The S828 also supports a 2nd front feed forms path.

Genuine IBM IPDS

For IBM environments, the S828 offers genuine IBM IPDS for absolute compatibility and functionality. In addition to standard Ethernet, USB, Parallel and Serial, the S828 supports ANSI 3.64 and the 18-pin emulations used by legacy IBM & Genicom printers to allow for plug & play compatibility without requiring driver or application changes.

规格

Print Technology

18-pin serial dot matrix printer – 136 columns @ 10cpi

Throughput (ISO/IEC 10561 – @10CPI)

DIN Letter Up to 660 PPH
Spreadsheet Up to 450 PPH

Throughput (Draft Mode @10CPI)

40 CPL 450 LPM
80 CPL 330 LPM
136 CPL 250 LPM

Print Speed

DP Mode: 800, 960, 1200 CPS
DP Text: 480, 576, 720 CPS
NLQ: 232, 278, 348 CPS

Line Length (number of characters)

10 cpi – 136
12 cpi – 163
15 cpi – 204
17.1 cpi – 233
20 cpi – 272
24 cpi – 326

Media Handling

Front feed 6-pin tractor with jam sensor. Optional second front feed 6-pin tractor with jam sensor

Media Specifications

Media Type: Continuous form, front loading
Width: 76 to 432 mm (3” to 17”)
Length: 78 to 610 mm (3” to 24”)
Max Thickness: 0.635 mm (0.025”)
Copies: 1+7
Weight: Top form: 55 to 150 g/m2
Attached Sheet: 45 to 75 g/m2

Horizontal Spacing

10, 12, 15, 17.1, 20, 24 CPI & proportional

Vertical Spacing

6, 8, 12 lines per inch
3, 4, 6, 8, 12 lines per 30mm

Graphics Resolution (DPI)

Horizontal: 60, 72, 80, 90, 120, 144, 240 Vertical: 72, 144

Fonts

Draft, Courier, Gothic, OCR-A, OCR-B

Barcodes

Codabar, UPC-A, UPC-E, EAN-8, EAN-13, UPC/EAN ADD-ON 2 and 5, Code 2 of 5, Code39, Code128, Code11, Code93, CodeGP, CodeBCD, C25-3BAR, Postnet, MSI, Intelligent Mail barcode

Memory

Input buffer: 128 Kb

Connectivity

USB 2.0, Parallel, Serial RS232, Ethernet 10/100 (optional IPDS)

Ribbon Life (@ Draft)

Extended Life Ribbon: 25 Million Characters

Printhead Life

800 million character yield

Workload

Pages per month (max. 4 hrs/day): 57,000

Physical Dimensions

Dimensions (L x W x H): 450 x 730 x 350 mm / 17.7 x 28.7 x 13.8”
Weight: 33 Kg / 72.6 lbs

Power Requirement

100~240V, Auto Range, (60~50 Hz)

Reliability

MTBF: 20000小时

Software

Remote Printer Management Utility

Power Consumption

120W Printing, 30W Standby

Operating Environment

Temp 10° to 40.6°C (50° to 105°F)
Humidity 10% to 90% Relative Humidity
Storage Temp -35° to 65°C (-31° to 149°F)
Humidity 5% to 95% Relative Humidity
Noise<54 dB (A)

Drivers

Win10 (32/64), Win8 (32/64), Win7 (32/64), WinServer2008 (32/64), Win2003 (32/64), WinNT, WinXP

Emulation Types

Epson® FX Series, IBM® Proprinter III XL, IBM Personal Printer 2381, ANSI 3.64, S828 native commands IPDS: IBM 4224, IBM 4230 and S828 native command

Special Functions

Auto paper path switching via operator panel or software commands. Auto forms thickness adjust. Auto fanfold position for zero tear-off. Auto paper parking.

耗材和配件

Second Front Feed 6-pin Tractor

Optional second tractor allows the customer to have two separate forms loaded into the printer at the same time. This is valuable for any customer who is frequently switching between two separate forms as it allows them to have both forms loaded into the printer at all times.

Available on: S809 & S828

IPDS Chip

Installable chip enables the customer to print IBM IPDS jobs

Available on: S828

Enclosed Pedestal Printer Stand

This printer stand supports up to two separate input forms, and has a rear output tray

Available on: S828

Extended Life Ribbon

Yield: 25M Characters

Available on: S809 & S828
